Witson Self-leveling Pipe Drain Sewer Inspection Camera System

FOB Reference Price:Get Latest Price
US $1,100-2,500 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
8000 Set/Sets per Month
Port:
ZHUHAI, SHENZHEN, CHINA
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WITSON
Model Number:
W3-CMP3288-120SY
Type:
Digital Camera
Style:
push rod camera inspection system
Sensor:
CCD
Technology:
self-leveling
Special Features:
Waterproof / Weatherproof
Camera resolution:
420TV line CCD
Camera Diameter:
50mm
Camera light rescource:
18 highlight LEDs
Camera Image sensor:
1/4" Sharp CCD Sensor
Camera protection:
Center protector
Cable Length:
60/120m
Tube diameter:
9mm
LCD Size:
With 7" LCD Monitor(10'' optinal)
Recorder:
Support USB Device for recording
Power supply:
Battery box or power adapter
Packaging & Delivery
Packaging Details
carton box
Delivery Time
TO BE INQUIRED

 HOT!WITSON Sewer Inspection camera with 120m fiberglass cable,7'' LCD monitor and 50mm self-leveling camera

Applications:

1) For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;

2) For Maintenance of Plumbing and Wiring behind walls



Feature:

1)External Text Writer to help incorporate the text commentary on video

2)Easy-carry Transportable Push Rod Wheel

3)With Internal Lithium-ion battery Power Unit for 4 working hours

4)Audio Commentary Recoding Via Microphone



Whole Sets Include:
* 7"LCD Monitor DVR Box :
Support USB DVR Function(Backup and Playback Through USB Flash Disk, SD Card Reader or Removable Hard Disk)
With Durable Safety Case: 460*370*180mm
* Color Inspection Camera:
1/4" Sharp CCD Sensor:420 TV line resolution
18 White LED Lights
Horizontal Self Leveling
Camera view angle: 80 degree (Horizontal and Vertical)
Sapphire Glass Lens: 3.6mm
Auto balance picture
with center protector
* Stainless Wheel with Push Rob Fyberglass Cable:
Stainless wheel with special structure connecter to monitor
meter counter device
Gold touch-point connecter to Camera
Meter Counter Device
60/120m (197/394 ft) fiberglass rod cable
Size: 770(L)*830(H)*360(W)mm
* Centre Protector Size:(camera protector)
1.Φ 220x L79 mm;
2.Φ 140x L79 mm;
3.Φ 90x L79 mm.
* Charging Battery:
12V-4500mAH Lion Charging Battery
DC 12V Output/AC 90-260V Switch Adaptor Charge

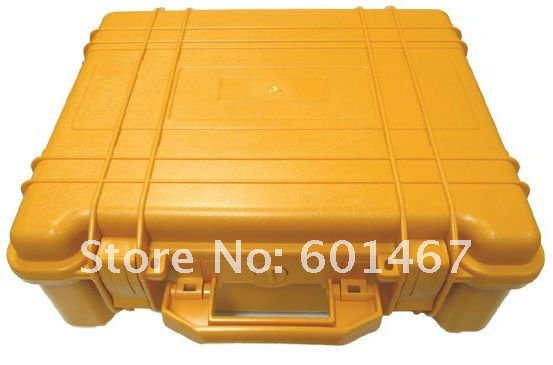

7'' Moniter LCD DVR(10'' Moniter optional):               Durable safety case:

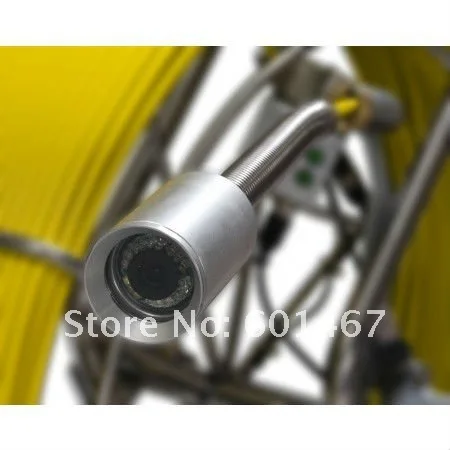

Self-leveling Camera Head:









Two kinds of 512Hz transmitter optional:

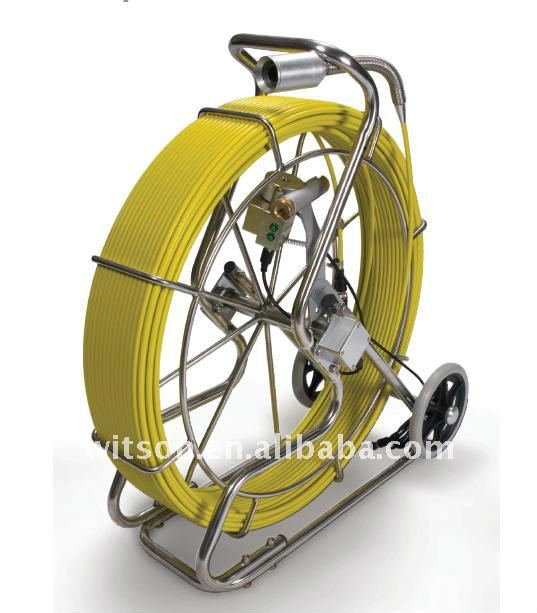

Push Rob Fyberglass Cable,Stainless Wheel (with Meter Counter)



  Metric Meter Counter to Displaycable distance on Screen:



 Center Protector:
