Witson Deep Underwater Borehole Inspection Camera System with 500M cable

FOB Reference Price:Get Latest Price
US $2,000-8,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WITSON
Model Number:
W3-CMP4015
Type:
Digital Camera
Style:
Mini Camera
Sensor:
CCD
Technology:
Pan / Tilt / Zoom
Special Features:
Waterproof / Weatherproof
Keyword:
Borehole Inspection Camera
Winding speed:
0~20m/min
Video storage Medium:
Built in 128GB SSD or USB device
Transmitter distance:
30m
Video input option:
Borehole Camera or Pan & Tilt Camera
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Port
Zhuhai, Shenzhen, China
Lead Time :
7 WORKING DAYS AFTER RECEIPT OF PAYMENT

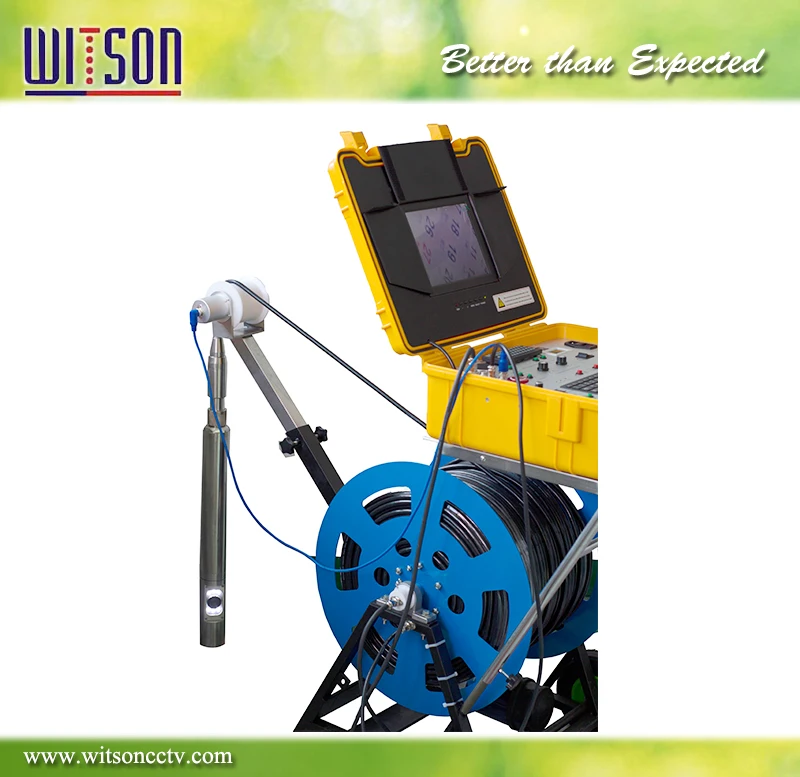

             WITSON Dual View Deep Water Borehole Inspection Camera System

                                                       Model:W3-cmp4015

.jpg



Key Features:

  • Dual waterproof camera for deep well inspection.
  • 63mmX L570mm stainless steel 700TVL camera.
  • IP68 waterproof,up to 50 Bars
  • 100m-500m twist wires cable with electric winch
  • Electric winch winding speed adjustable
  • HD DVR control box with Audio/video recording function
  • Built-in 128G Solid State Drives to storage video/Audio files
  • Built-in compass and temperature sensor

borehole camera 1.jpgborehole camera 3.jpg

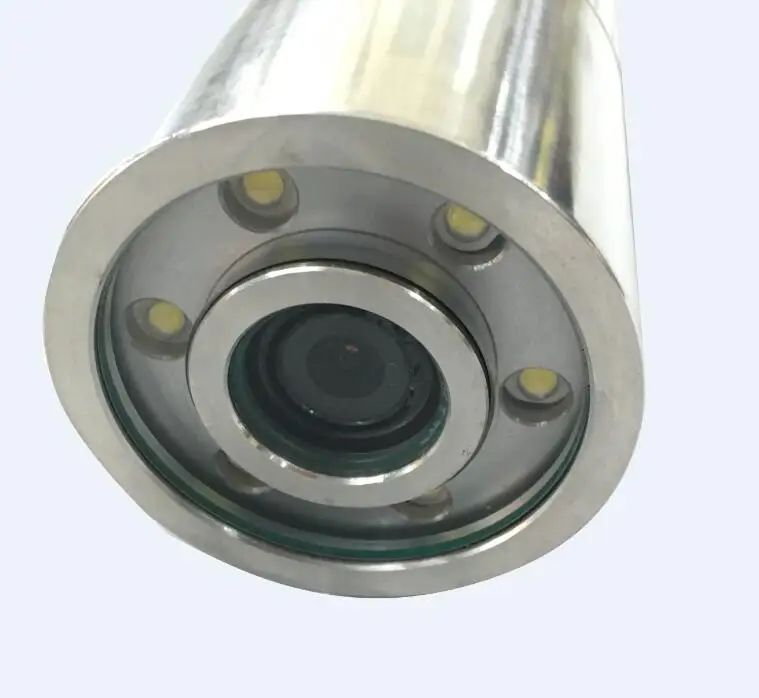

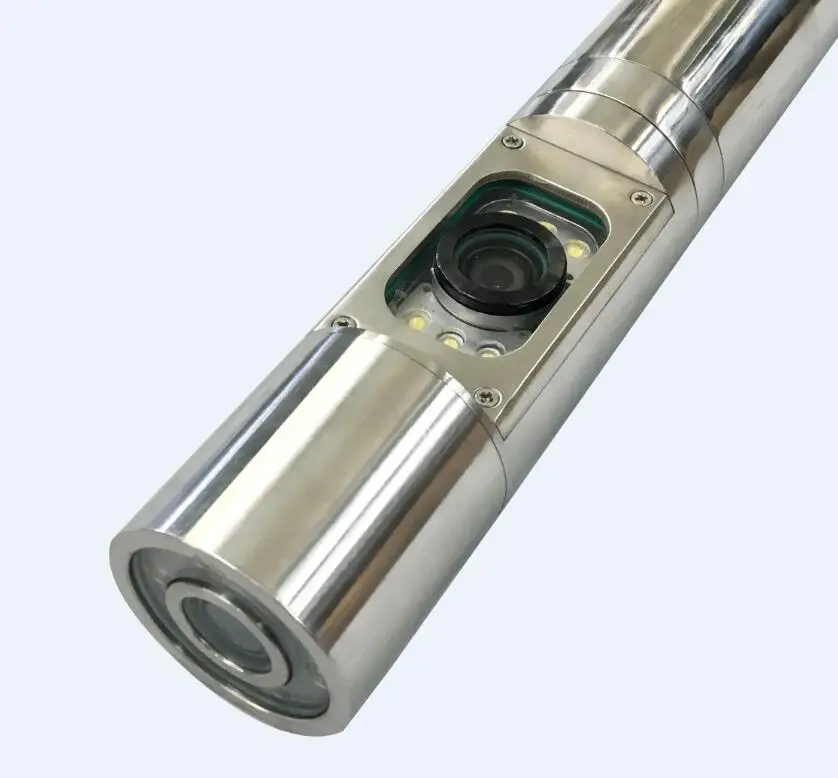

HD Dual View Waterproof and pressure-resistant Camera

  • 63mm L570mm Stainless steel casing
  • Waterproof IP68 Operating depth 50 bars(725 PSI)
  • Dual Camera Down&Side viewing
  • Pan 360' rotate endless
  • View angle 120'
  • Horizontal resolution 700TVL
  • 6 pcs high light LDE(down view)
  • 6 pcs high light LED (side view)
  • Camera weight 6KG
  • 5.jpgElectric Winch with cable
  • Electirc cable rolling
  • Cable speed adjustable
  • 10mm twisted pair cable (100m-500m option)
  • Power supply AC 110/AC230V,DC12~24V
  • OSD(on screen display)depth
  • Control Panel.jpg1502184848(1).png
  • Montior DVR Controller
  • 10''industrial color monitor
  • Display model 4:3
  • Resolution 1024*768
  • Menu language 9 languages optional

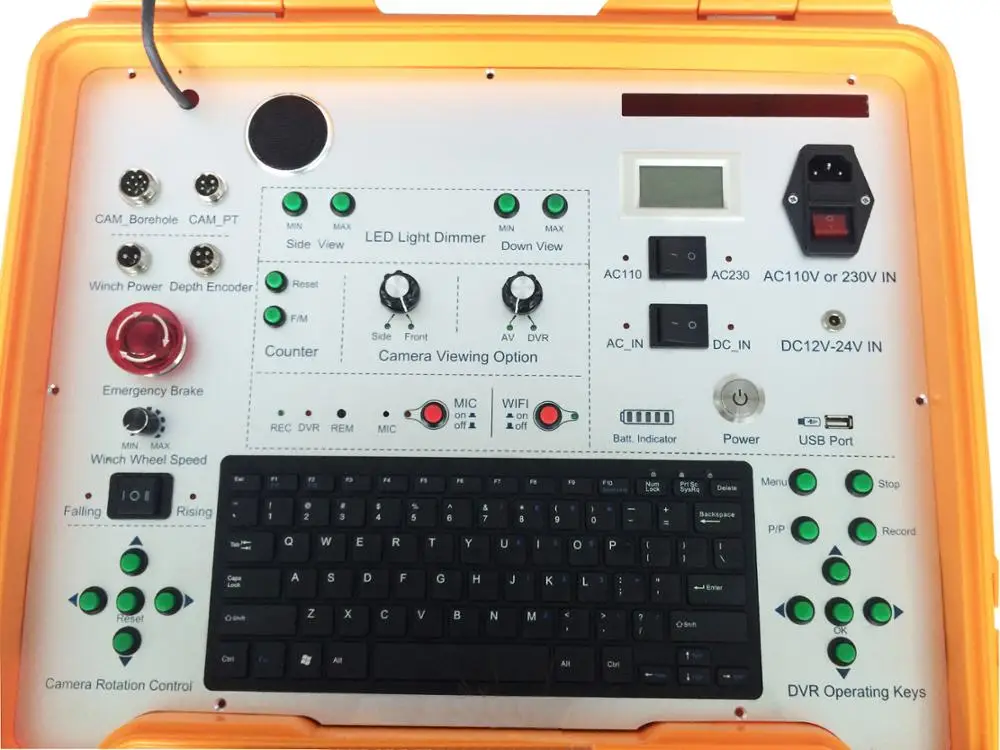

Controller Panel and features

  • Winch operating knob (adjusting speed,cable up and down,brake)
  • Camera rotation control button(clockwise and counter clockwise)
  • Down and side camera select button and LED brightness control button
  • HD DVR Audio/Video recording&playback
  • OSD On-screen depth encoder,temperature and directon

Built in WIFI transmitter

  • Using Smart Phone or Tablet as display and recording device
  • Through WF wireless transmit video to Android,Apply OS or MID terminal
  • Non-interference for 2.4G wireless remote conitrol
  • 1502331693(1).pngDeepWater Camera-4015.jpg

Package information:

The whole system is packed in 2 cartons:

 G.WPackngMaterial
CTN1:Camera+cable winch145.00KGS75*81*73cmWood Case
CTN2:MonitorDVR Controller15.00KGS55*36*50cmCarton
